一、熔断
基于feign调用场景下,实现熔断,需要以下2个步骤。

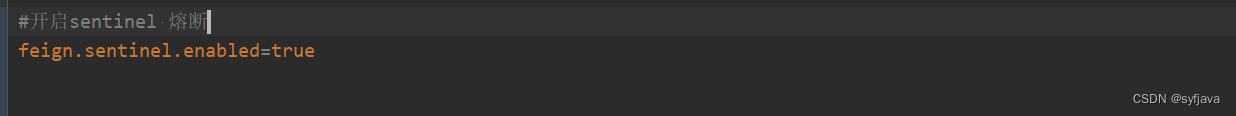

- 配置文件打开 Sentinel 对 Feign 的支持:
feign.sentinel.enabled=true (配置在调用方)
配置文件打开 Sentinel 对 Feign 的支持:
feign.sentinel.enabled=true
<dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-openfeign</artifactId> </dependency>
feign 熔断示列
1-如下图,在 feign上面配置回调, fallback
/**
* <简述>
* <详细描述>
* @author syf
* @date 2023/4/26 15:47
* @param null
* @return null
*/
@FeignClient(value = "gulimall-seckill" , fallback = SeckillFeignServiceFallBack.class)
public interface SeckillFeignService {
/**
* 根据skuId查询商品是否参加秒杀活动
* @param skuId
* @return
*/
@GetMapping(value = "/sku/seckill/{skuId}")
R getSkuSeckilInfo(@PathVariable("skuId") Long skuId);
}
fallback 编写如下: 通过实现上面 SeckillFeignService 接口
/**
* <简述>
* <详细描述>
* @author syf
* @date 2023/4/26 15:47
* @param null
* @return null
*/
@Component
public class SeckillFeignServiceFallBack implements SeckillFeignService {
@Override
public R getSkuSeckilInfo(Long skuId) {
return R.error(BizCodeEnum.TO_MANY_REQUEST.getCode(),BizCodeEnum.TO_MANY_REQUEST.getMsg());
}
}
二、降级策略
官方文档:
1-
rt 响应时间,单位毫秒。时间窗口:该时间内不再调用

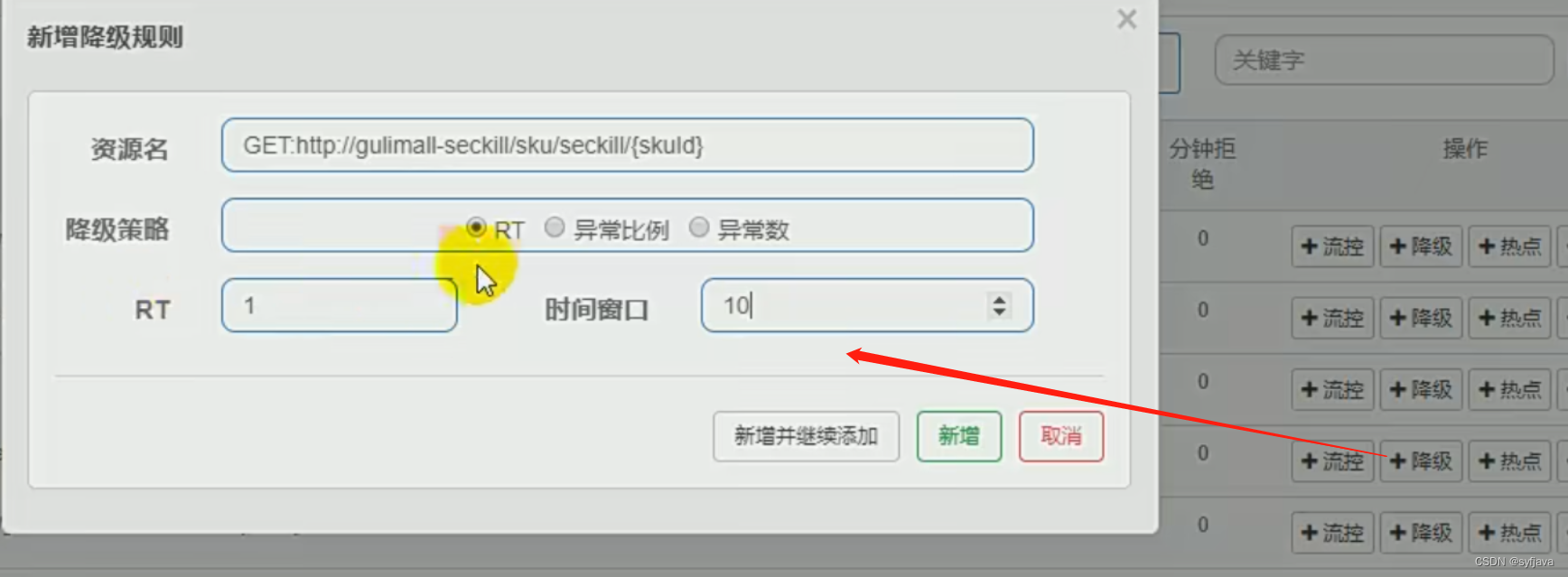

如下图 响应时间超过1 毫秒,10秒内将不再调用。

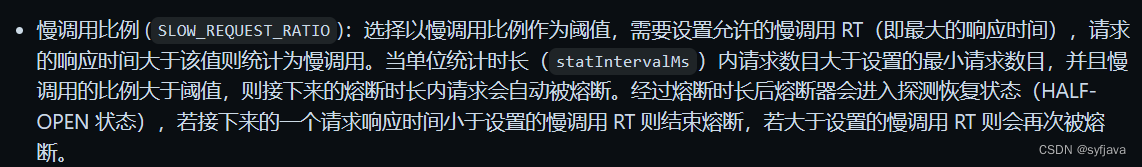

2- 慢调用比例

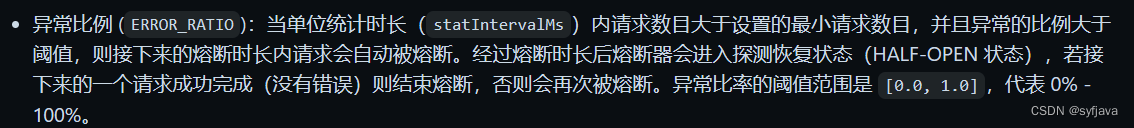

3- 异常数
注意:
4、使用Sentinel来保护feign远程调用,熔断; * 1)、调用方的熔断保护:feign.sentinel.enable=true * 2)、调用方手动指定远程服务的降级策略。远程服务被降级处理。触发我们的熔断回调方法 * 3)、超大浏览量的时候,必须牺牲一些远程服务。在服务的提供方(远程服务)指定降级策略; * 提供方是在运行,但是不允许自己的业务逻辑,返回的是默认的降级数据(限流的数据)
三、自定义受保护的资源
3-1 基于代码方式定义降级
注意异常降级仅针对业务异常,对 Sentinel 限流降级本身的异常(BlockException
)不生效。为了统计异常比例或异常数,需要通过 Tracer.trace(ex)
记录业务异常。示例:
@SentinelResource(value = "getCurrentSeckillSkusResource",blockHandler = "blockHandler")
@Override
public List<SeckillSkuRedisTo> getCurrentSeckillSkus() {
try (Entry entry = SphU.entry("seckillSkus")) {
} catch (Throwable t) {
if (!BlockException.isBlockException(t)) {
Tracer.trace(t);
}
}
return null;
}

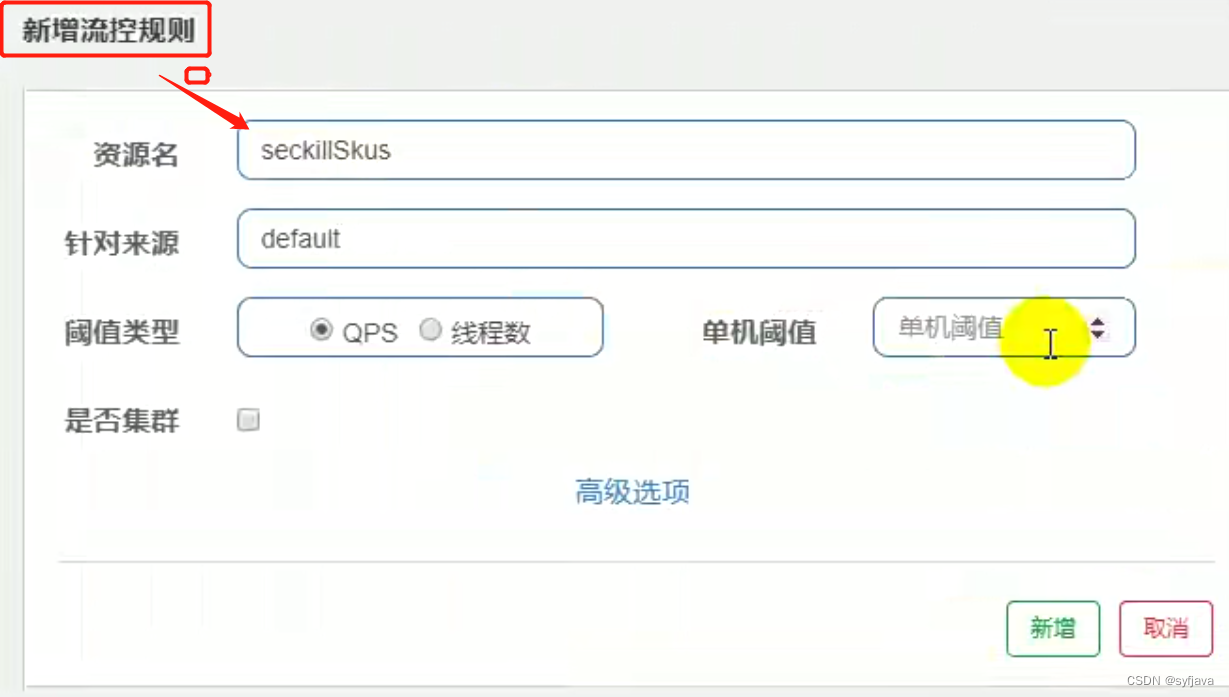

新增流控规则,资源名称为上面代码定义的资源名
3-2 基于注解方式定义资源
开源整合模块,如 Sentinel Dubbo Adapter, Sentinel Web Servlet Filter 或 @SentinelResource
注解会自动统计业务异常,无需手动调用。

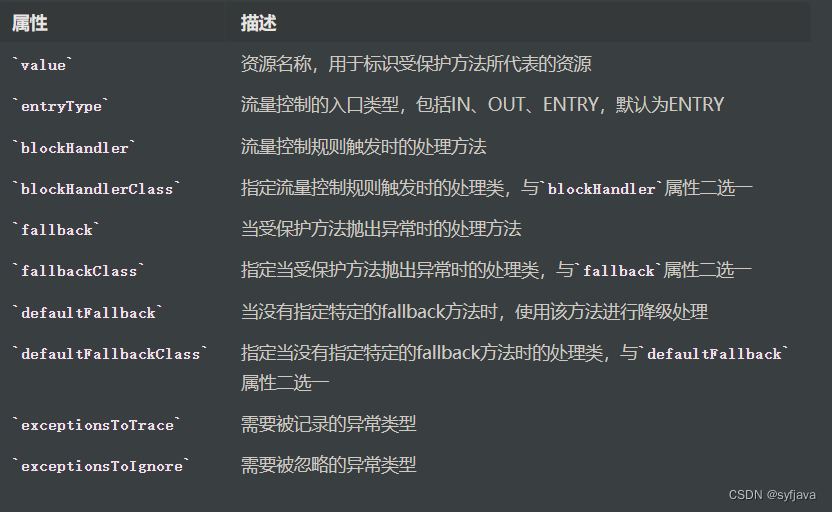

@SentinelResource 具体使用可以自行百度。

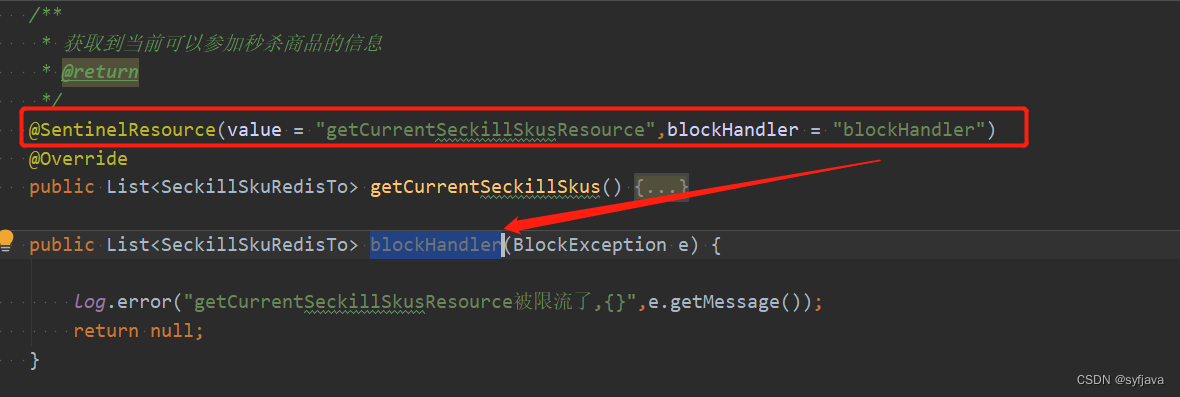

demo如图:
四、网关流控

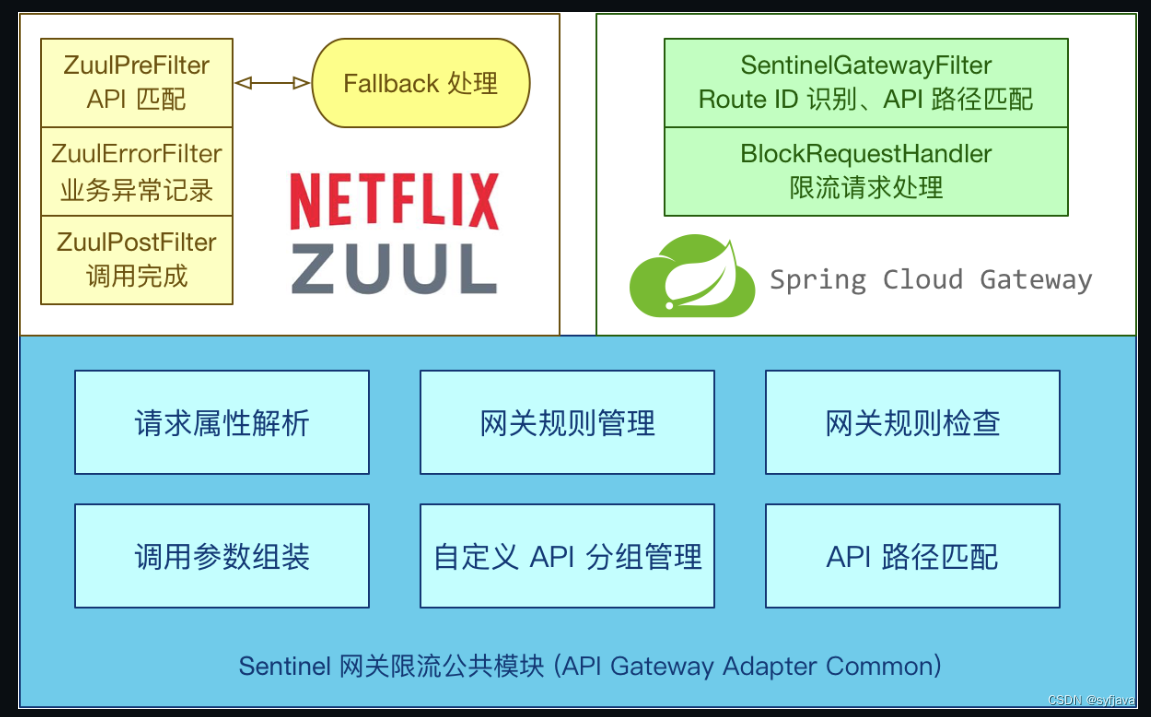

Sentinel 支持对 Spring Cloud Gateway、Zuul 等主流的 API Gateway 进行限流。
4-1整合spring cloud 网关
官网地址:
导入 Maven 依赖
<dependency>
<groupId>com.alibaba.csp</groupId>
<artifactId>sentinel-spring-cloud-gateway-adapter</artifactId>
<version>x.y.z</version>
</dependency>

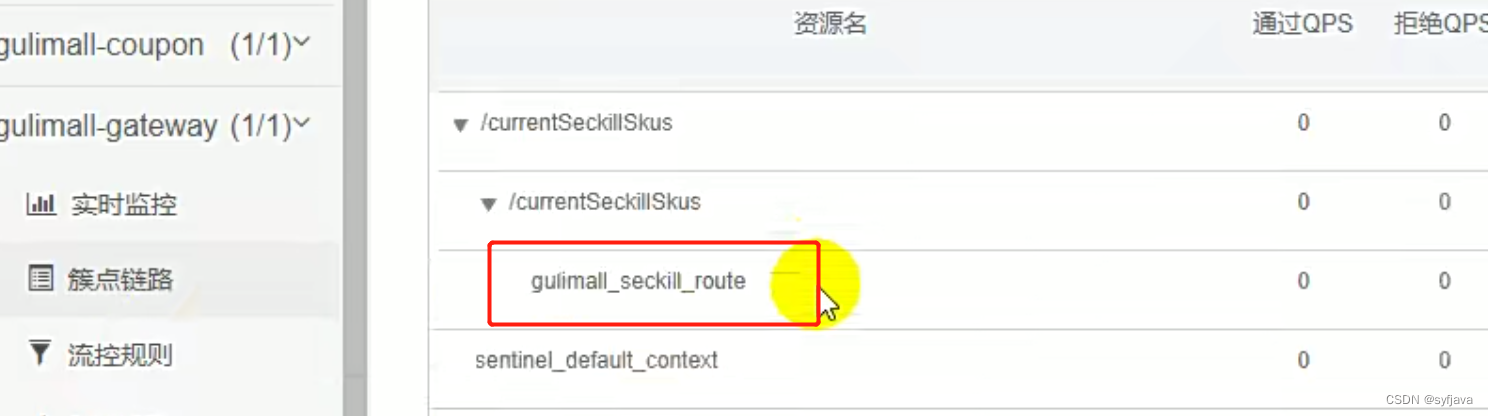

这个时候请求进入,网关就能感知到请求在网关配置的路由id。

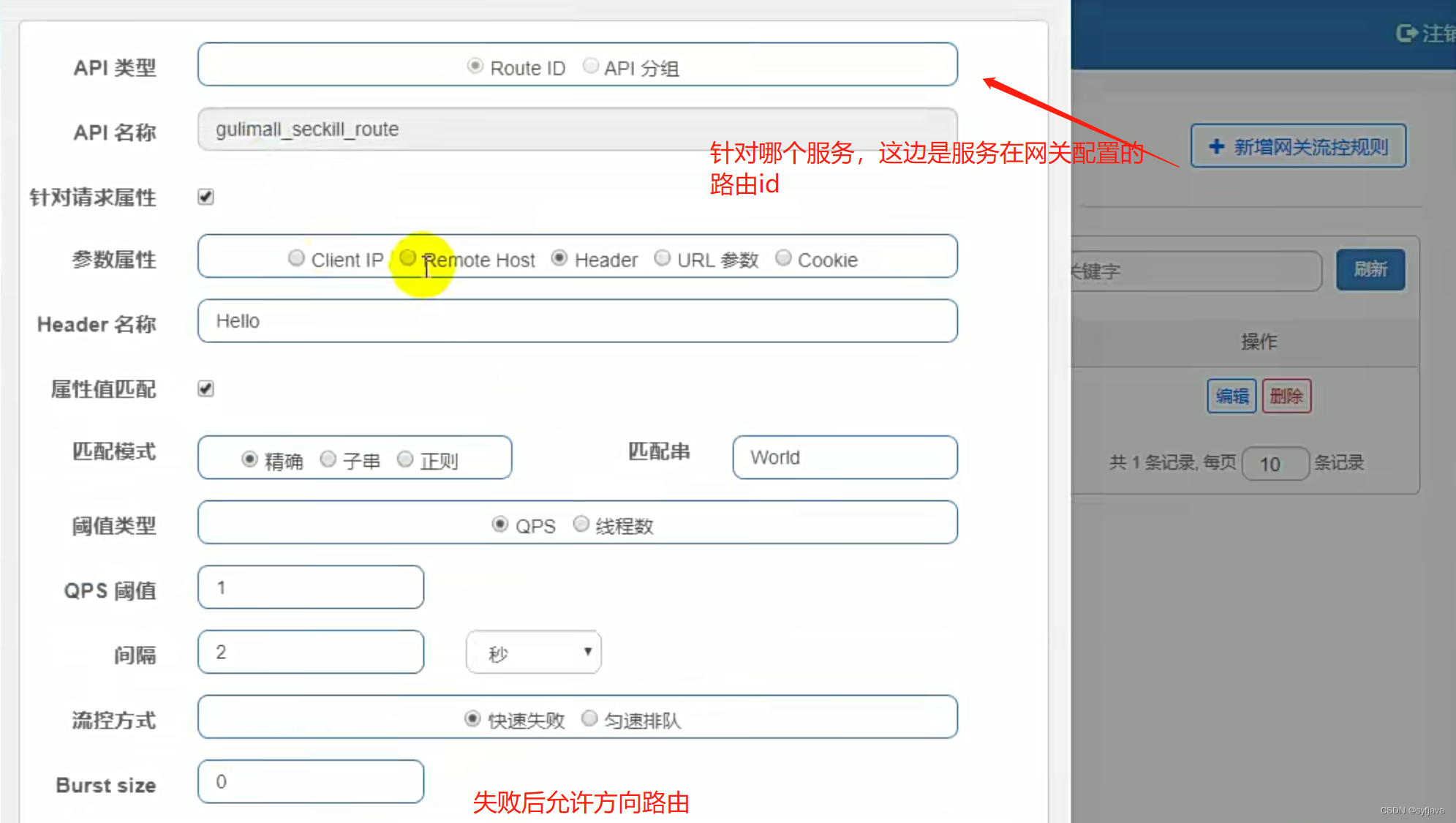

下面展示1.70版本的控制台的网关配置新增页面,具体配置可以看官网上面地址已经贴出
4-2自定义网关限流回调
使用时只需注入对应的 SentinelGatewayFilter
实例以及 SentinelGatewayBlockExceptionHandler
实例即可(若使用了 Spring Cloud Alibaba Sentinel,则只需按照文档进行配置即可,无需自己加 Configuration)。比如:
package com.atguigu.gulimall.gateway.config;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.BlockRequestHandler;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.GatewayCallbackManager;
import com.alibaba.fastjson.JSON;
import com.atguigu.common.exception.BizCodeEnum;
import com.atguigu.common.utils.R;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.reactive.function.server.ServerResponse;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;
/**
* <简述>配置网关回调
* <详细描述>
* @author syf
* @date 2023/4/27 17:18
* @return null
*/
@Configuration
public class SentinelGatewayConfig {
public SentinelGatewayConfig() {
GatewayCallbackManager.setBlockHandler(new BlockRequestHandler() {
//网关限流了请求,就会调用此回调
@Override
public Mono<ServerResponse> handleRequest(ServerWebExchange exchange, Throwable t) {
R error = R.error(BizCodeEnum.TO_MANY_REQUEST.getCode(), BizCodeEnum.TO_MANY_REQUEST.getMsg());
String errorJson = JSON.toJSONString(error);
Mono<ServerResponse> body = ServerResponse.ok().body(Mono.just(errorJson), String.class);
return body;
}
});
}
}

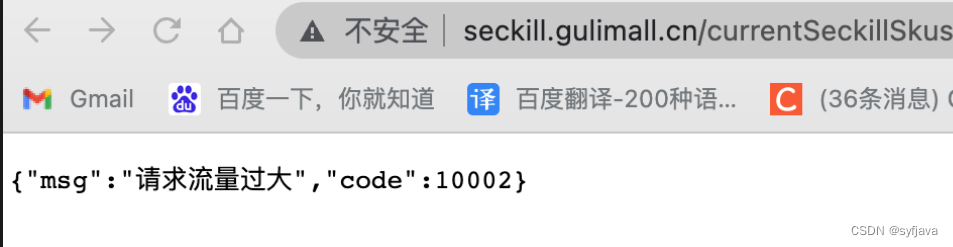

返回示范如下
